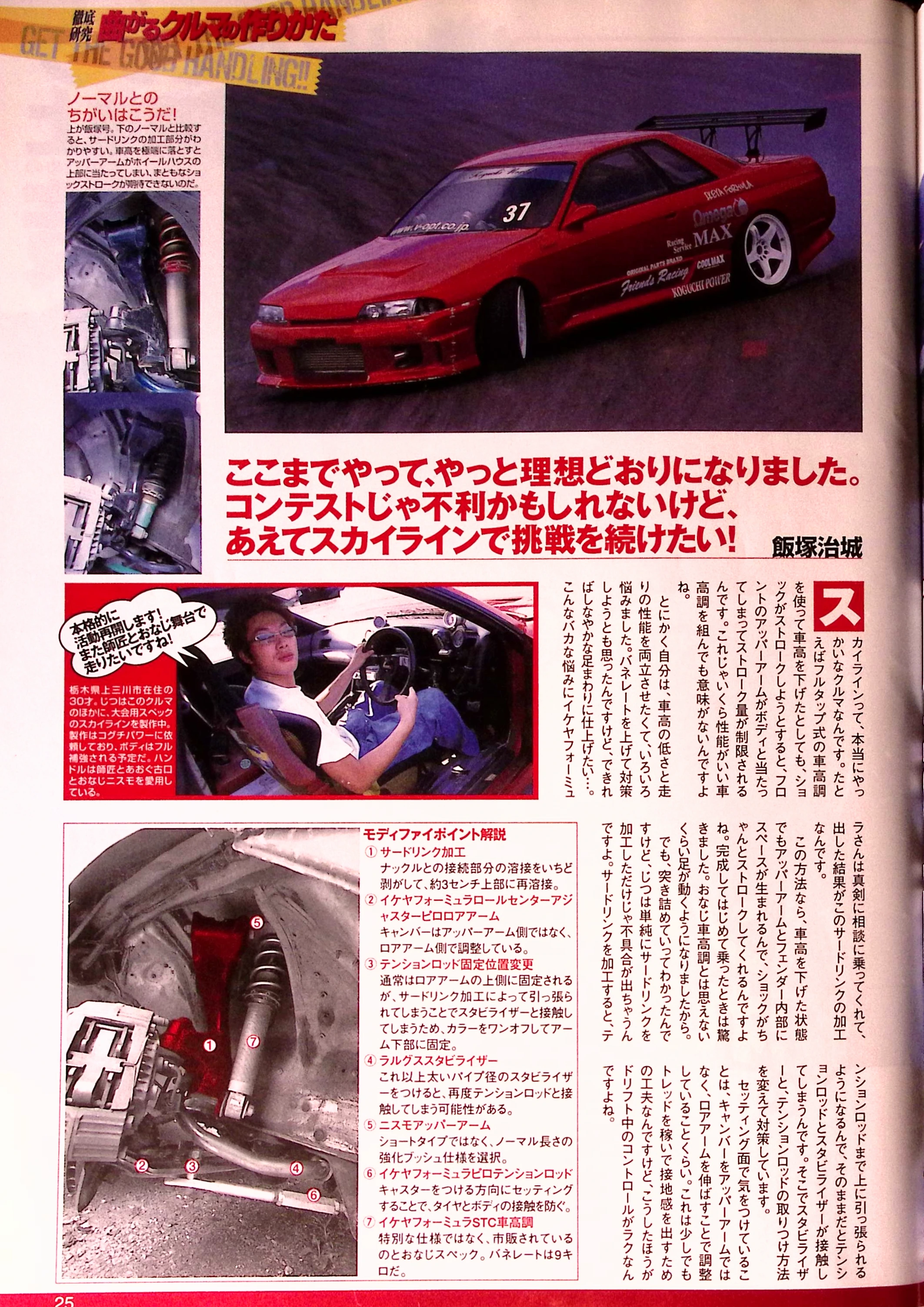

  1. GET THE GOOD HANDLING!!
  2. Research
  3. In depth
  4. How to build a car that corners
  5. Compare with standard: Iizuka’s car is above, the standard setup below, showing the modified third link. With an extremely low ride height, the upper arm strikes the top of the wheel housing, preventing adequate shock travel.
  6. IXEYA FORHULA
  7. w.yopt.co.jp
  8. 37
  9. Racing
  10. OmegaC
  11. MAX
  12. Friends Racing
  13. ORIGDIAL PARTS BRASD
  14. KOGUCHI POWER
  15. Serike
  16. COOLMAX
  17. Only after going this far did it finally match my ideal. It might be a disadvantage in competitions, but I want to keep taking on the challenge with a Skyline!
  18. Iizuka 治城 [given-name reading unverified]
  19. …you know. [isolated fragment]
  20. S… [fragment of Skyline]
  21. In earnest…
  22. …I’m resuming my activities!
  23. Once again, on the same stage as my mentor…
  24. …I’d like to drive!
  25. Age 30, living in Kaminokawa, Tochigi. Besides this car, he is building a competition-spec Skyline through Koguchi Power, with full body reinforcement planned. He favors the same Nismo steering wheel as his mentor Koguchi.
  26. …uses it. [continued]
  27. Modification guide: 1. Modified third link
  28. ①
  29. Remove the weld at the connection to the knuckle, then reweld it approximately 3 cm higher.
  30. ② Ikeya Formula roll-center-adjusting…
  31. …spherical-bearing lower arms. Camber is adjusted at the lower arm rather than the upper arm. Change the tension-rod mounting position: normally it mounts above the lower arm, but the third-link modification pulls it upward and causes contact with the anti-roll bar. A custom spacer allows it to mount beneath the arm. [several clipped words]
  32. ③
  33. 4
  34. 4. Largus anti-roll bar
  35. Installing an anti-roll bar with a larger tube diameter could once again cause contact with the tension rod…
  36. ⑤ Nismo upper arms
