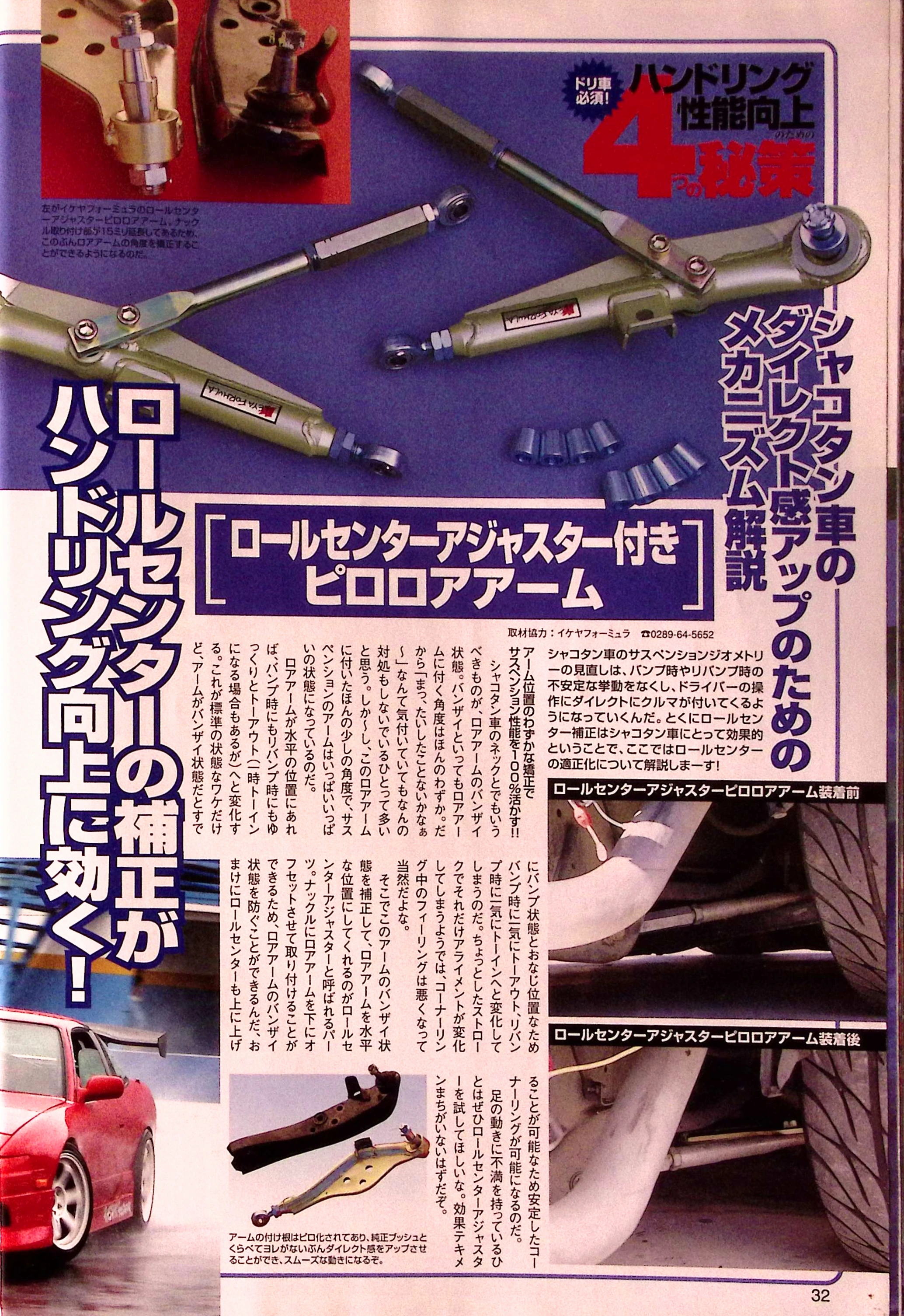

Open enlarged scan

  1. Drift cars
  2. Handling
  3. Essential!
  4. Secret techniques
  5. Performance improvement
  6. On the left is the Ikeya Formula roll-center-adjusting spherical-bearing lower arm. The knuckle attachment is extended, allowing the lower-arm angle to be corrected by that amount. [extension measurement is corrupted in OCR]
  7. [Unclear: isolated heading fragment]
  8. For improved direct feel… [opening damaged]
  9. Explaining the mechanisms of lowered cars [OCR damaged]
  10. Effective for improving handling…
  11. [Unclear: isolated heading characters]
  12. Roll… [fragment]
  13. …center correction… [fragment]
  14. With roll-center adjustment… [OCR damaged]
  15. Spherical-bearing lower arms
  16. A slight correction of arm position lets the suspension work to its full potential! One weakness of lowered cars is the upward angle of their lower arms. The angle may be small, so many people notice it but do nothing, thinking it cannot matter much. Yet that slight angle puts the suspension arms near the limit of their operating range. With the lower arm horizontal, both bump and rebound gradually change toe toward toe-out, though it may briefly become toe-in. That is the standard condition, but when the arm angles upward it is already… [continued]
