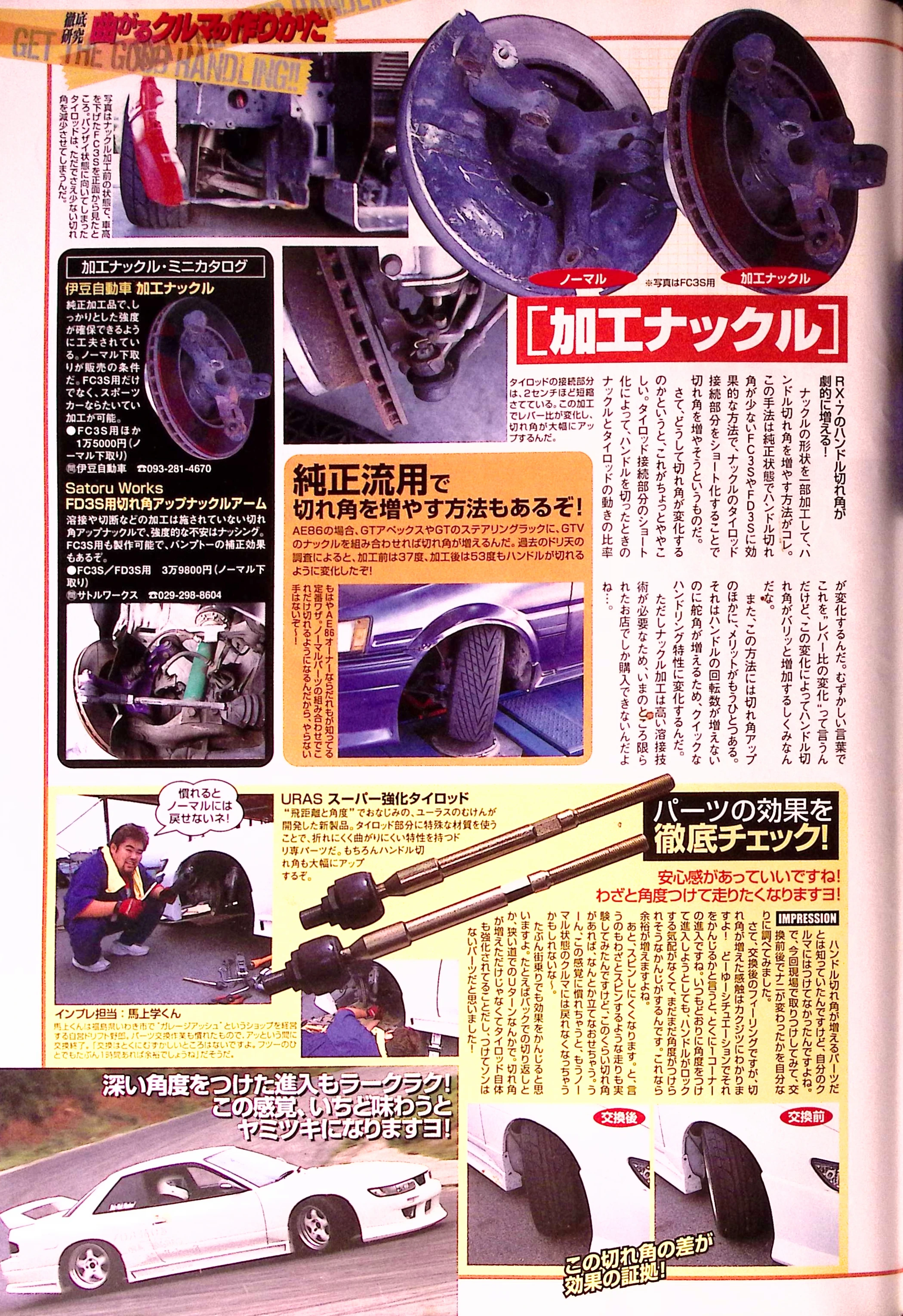

  1. GET HE GOND HANDLING!
  2. Thorough [OCR damaged]
  3. How to build a car that corners
  4. This is a front view of a lowered FC3S before the knuckle modification. The upward-angled tie rods reduce its already limited steering angle. [OCR damaged]
  5. Modified knuckles: mini catalog
  6. Stock
  7. The photo shows the FC3S version
  8. Modified knuckles
  9. [Modified knuckles]
  10. The tie-rod connection is shortened by about 2 cm. This changes the lever ratio and substantially increases steering angle.
  11. ¥15,000 (… [continued]
  12. …gle. [continued]
  13. Telephone: 093-281-4670
  14. There is also a way to increase steering angle using factory parts!
  15. …with… [fragment]
  16. …as well. [continued]
  17. On an AE86, combining a GT Apex or GT steering rack with GTV knuckles increases steering angle. An earlier Drift Tengoku test measured 37° before and 53° afterward.
  18. A well-known modification among AE86 owners. With this much extra angle from a combination of factory parts, there is every reason to do it. [chassis code corrupted in OCR]
  19. …exchange). [continued]
  20. Satoru Works — 029-298-8604
  21. For FC3S/FD3S
  22. ¥39,800 (standard part ex… [continued]
  23. …you know… [fragment]
  24. …that is how it works. [continued]
  25. You cannot go back to standard!
  26. Once you get used to it…
  27. URAS Super Reinforced Tie Rods. A new product developed by URAS’s Nomuken, known for drift distance and angle. A special material in the tie rod makes it difficult to break or bend. These drift-oriented parts also substantially increase steering angle… [OCR damaged]
  28. A thorough check of the parts’ effects!
  29. …increase it. [continued]
  30. The reassuring feeling is great!
  31. It makes me want to deliberately drive at a bigger angle!
  32. IMPRESSION
  33. [Unclear: damaged fragment]
  34. Test driver: 馬上学, a self-employed drifter who runs Garage Ash in Iwaki, Fukushima. Familiar with replacing parts, he finished quickly. He says the replacement has no particularly difficult steps and an ordinary person would probably have plenty of time in an hour. His name’s phonetic reading remains unverified.
